Espagnolette drives
Espagnolette drives with die-cast gearboxes, plain rods and gearbox units. Backsets 7.5, 15, 20, 22 and 25 mm, door versions PK30/35, lengths 300–2000 mm.

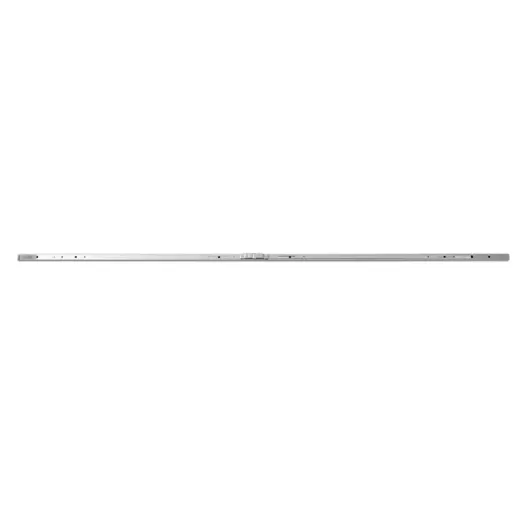

TX-DRIVES-1Espagnolette rod, without gearbox

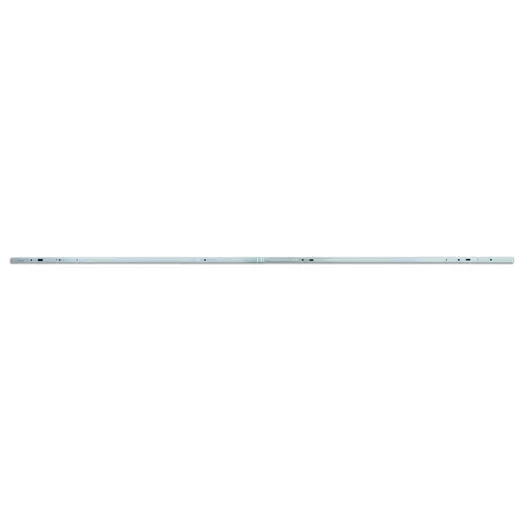

TX-DRIVES-2Espagnolette rod, without gearbox, alternative hole pattern

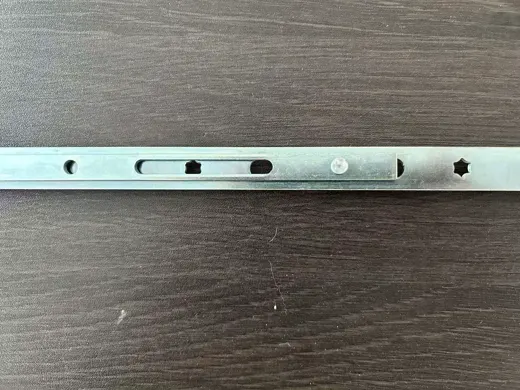

TX-DRIVES-3Espagnolette drive with gearbox and mushroom cams
TX-DRIVES-4Espagnolette drive, compact gearbox

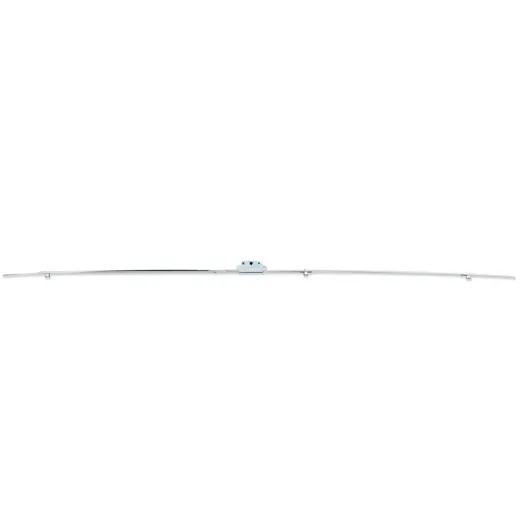

TX-DRIVES-5Espagnolette drive, three locking points

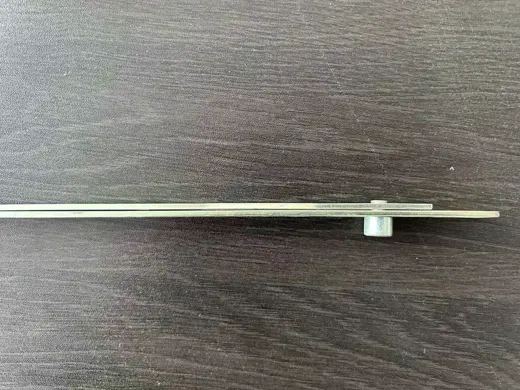

TX-DRIVES-6Espagnolette drive, chamfered gearbox, mushroom cams

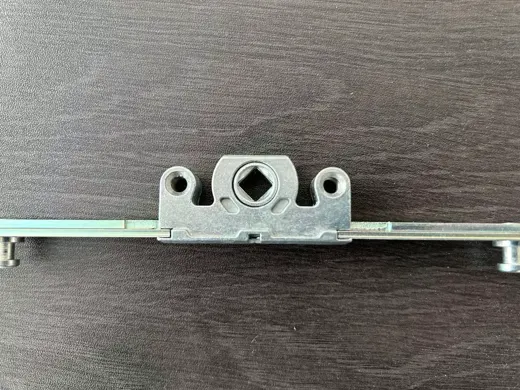

TX-DRIVES-7Espagnolette drive, U-shaped gearbox

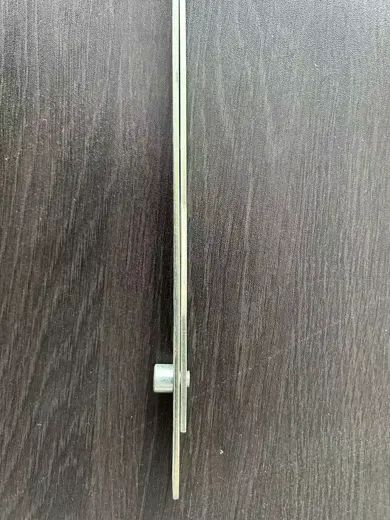

TX-DRIVES-8Espagnolette drive, low gearbox with round hole

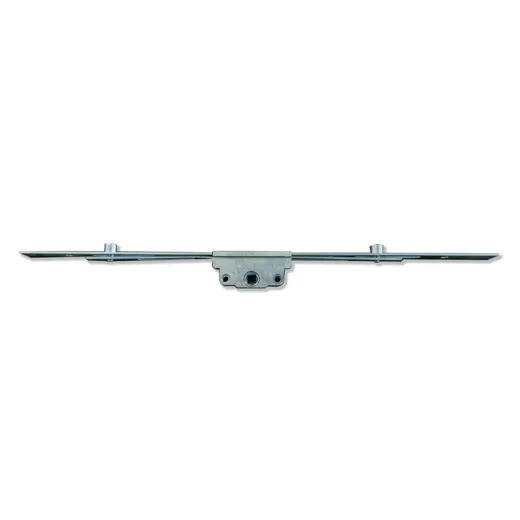

TX-DRIVES-9Espagnolette drive, drop gearbox, roller cams
TX-DRIVES-10Espagnolette drive, rounded gearbox, mushroom cams

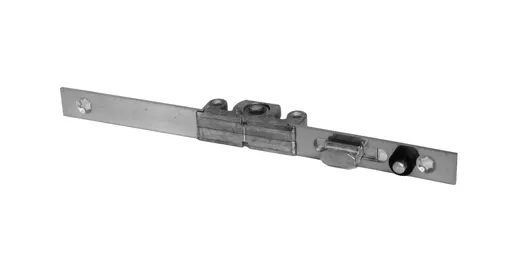

TX-DRIVES-11Espagnolette rod with roller cams

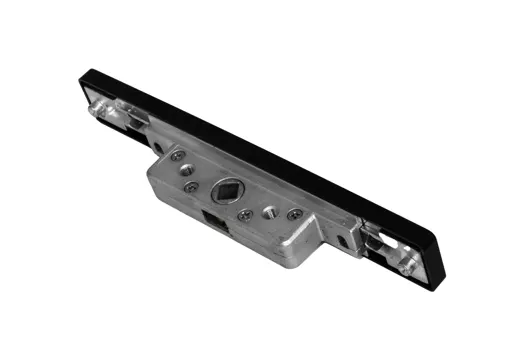

TX-DRIVES-12Gearbox unit with black base plate

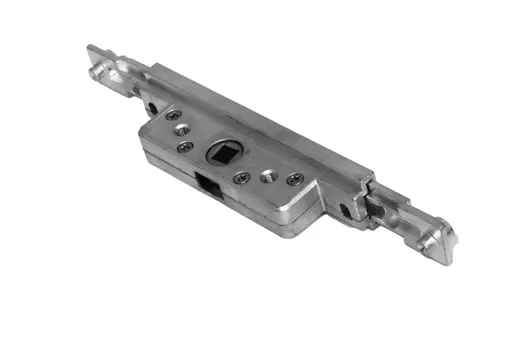

TX-DRIVES-13Gearbox unit with die-cast connectors
TX-DRIVES-14Espagnolette drive with separate keepers

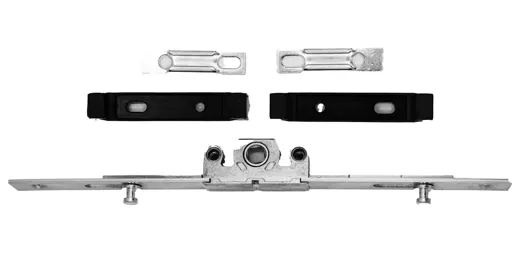

TX-DRIVES-15Espagnolette drive kit: rod, covers and keepers
